Product		Spec.				(%)
		JIS	ASTM	BS	DIN	Cu	Fe	Sn	Zn
Brass		H3250	B36	2874	17660
		C2700	C27000			63-67	0.05 -		Rem
		C2800	C28000	CZ109	CuZn40	59-63	0.10 -		Rem
Free Cutting Brass		H3250	B16	2874	17660
		C3601	C36000	CZ124	CuZn36Pb1.5	59-63	0.30 -	Sn+Fe0.5 -	Rem
		C3602	C36000	CZ124	CuZn36Pb1.5	59-63	0.50 -	Sn+Fe1.2 -	Rem
		C3603	C36000	CZ121	CuZn36Pb2	57-61	0.35 -	Sn+Fe0.6 -	Rem
		C3604	C36000	CZ121	CuZn36Pb3	57-61	0.50 -	Sn+Fe1.2 -	Rem
		C3605	C36000	CZ121	CuZn36Pb3	56-60	0.50 -	Sn+Fe1.2 -	Rem
Forging Brass		H3250	B124	B124	17660
		C3771	C37700	CZ122	CuZn36Pb2	57-61		Sn+Fe1.0 -	Rem

Product		Spec.				Temper	T.S. (Kgf/mm²)	E.L. (%)	Hardness Hv
		JIS	ASTM	BS	DIN
Brass		H3250	B36	2874	17660
		C2700	C27000			F Soft 1/2H H	Min30 Min30 Min36 Min42	Min30 Min40 Min20
		C2800	C28000	CZ109	CuZn40	F Soft 1/2H H	Min32 Min32 Min38 Min46	Min25 Min35 Min15
Free Cutting Brass		H3250	B16	2874	17660
		C3601	C36000	CZ124	CuZn36Pb1.5	F Soft 1/2H H	Min30 Min30 Min35 Min46	Min15 Min25	Min95 Min130
		C3602	C36000	CZ124	CuZn36Pb1.5	F	Min32		Min75
		C3603	C36000	CZ121	CuZn36Pb2	F Soft 1/2H H	Min32 Min32 Min37 Min46	Min10 Min20	Min100 Min130
		C3604	C36000	CZ121	CuZn36Pb3	F	Min34		Min80
		C3605	C36000	CZ121	CuZn36Pb3	F	Min34		Min80
Forging Brass		H3250	B124	B124	17660
		C3771	C37700	CZ122	CuZn36Pb2	F	Min32	Min15

· Lead Free Brass : Chemical Composition, Mechanical Property Should be discussed before placing an order.

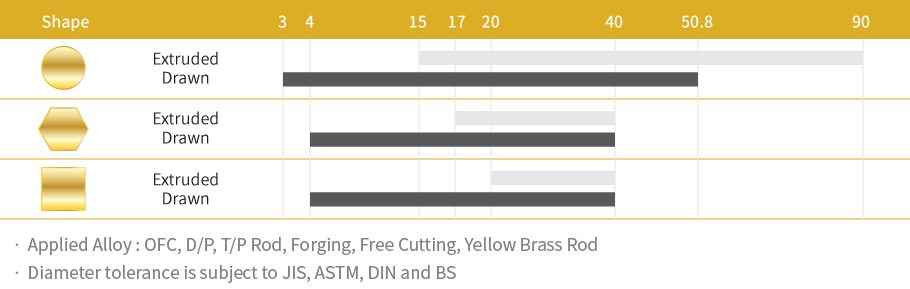

· Rod type

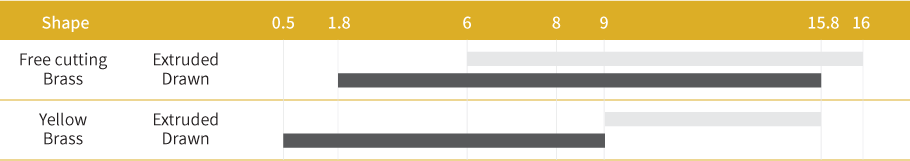

· Wire type

· Rod type

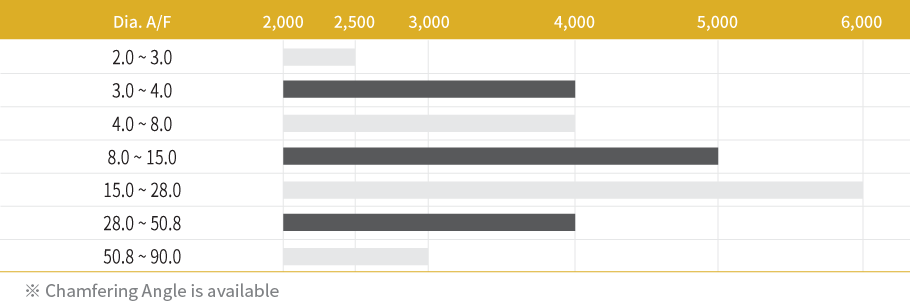

· Length

· Tolerance of Straightness (Drawing Rod)

Dia. A/F			Round									Hexagonal Square
						Free Cutting			Others
6.0~50.8			1,000 Under			1			2			5
			1,000~2,000			1			2			5
			1,000~5,000			4			5			13
